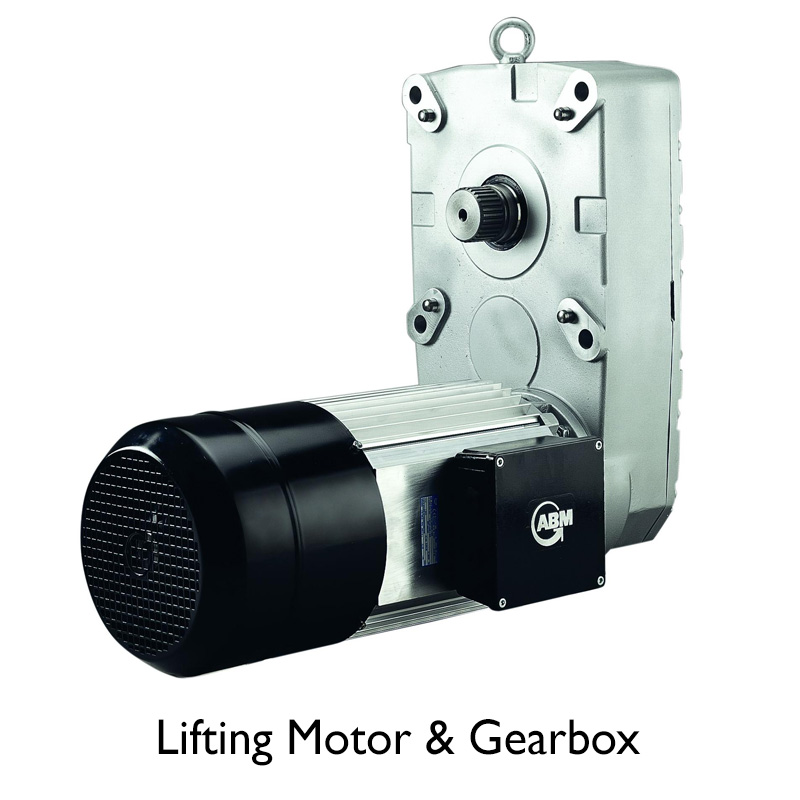

• Lifting Motor & Gearbox

For the applications of lifting asynchro- nous motors with special multipolarand helical lifting and quite driving reducers processed in high quality. Soft and safe acceleration.

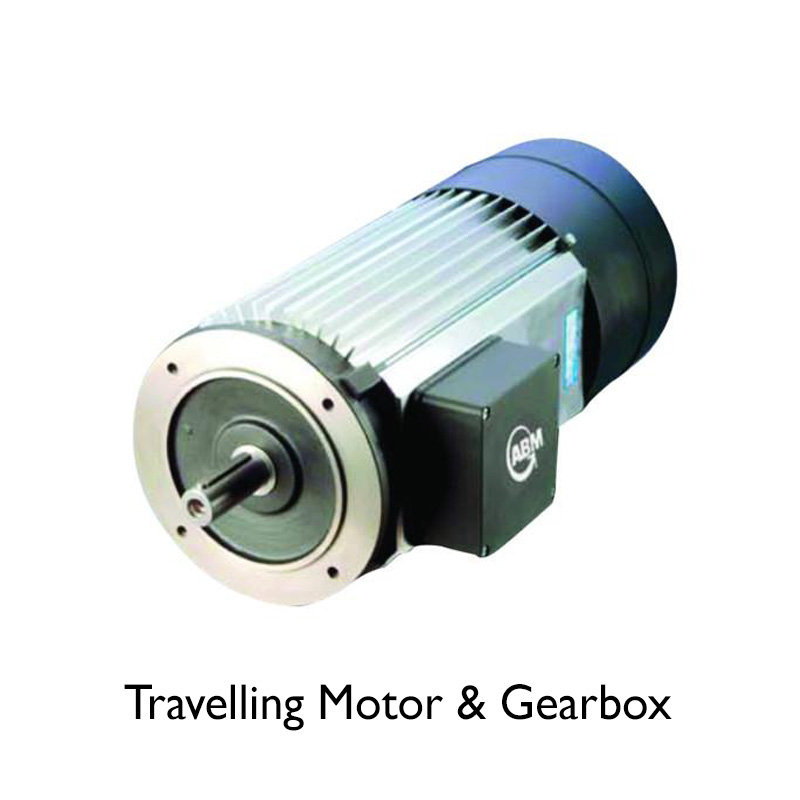

• Travelling Motor & Gearbox

For the applications of driving asynch- ronous motors with special multipolar and helical lifting and quite driving reducers processed in high quality. Soft and safe acceleration.

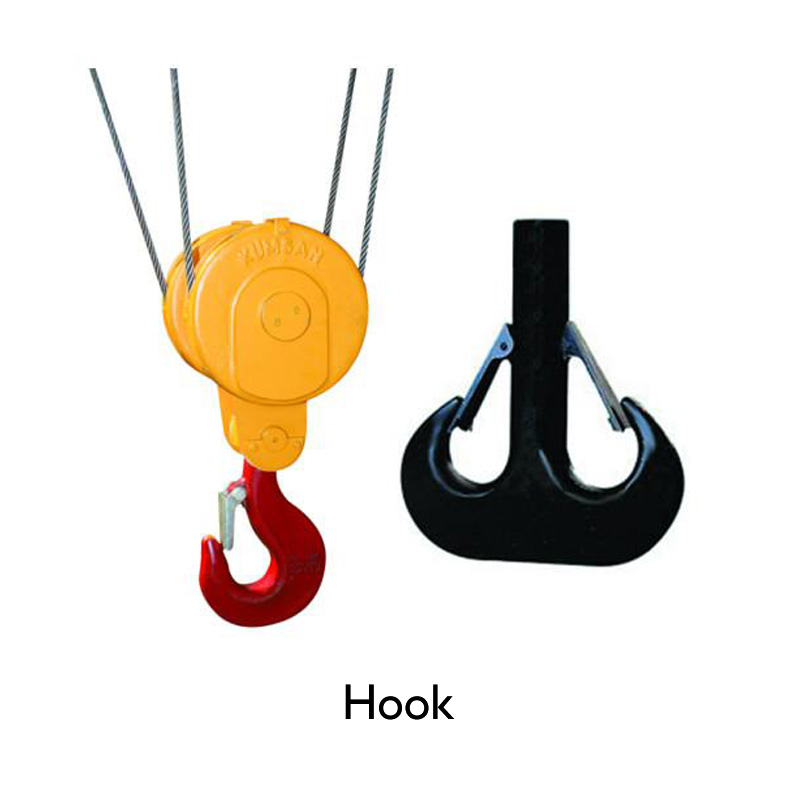

• Hook

Single and double mouth hook that is made by forging according to the DIN 15401-15402.

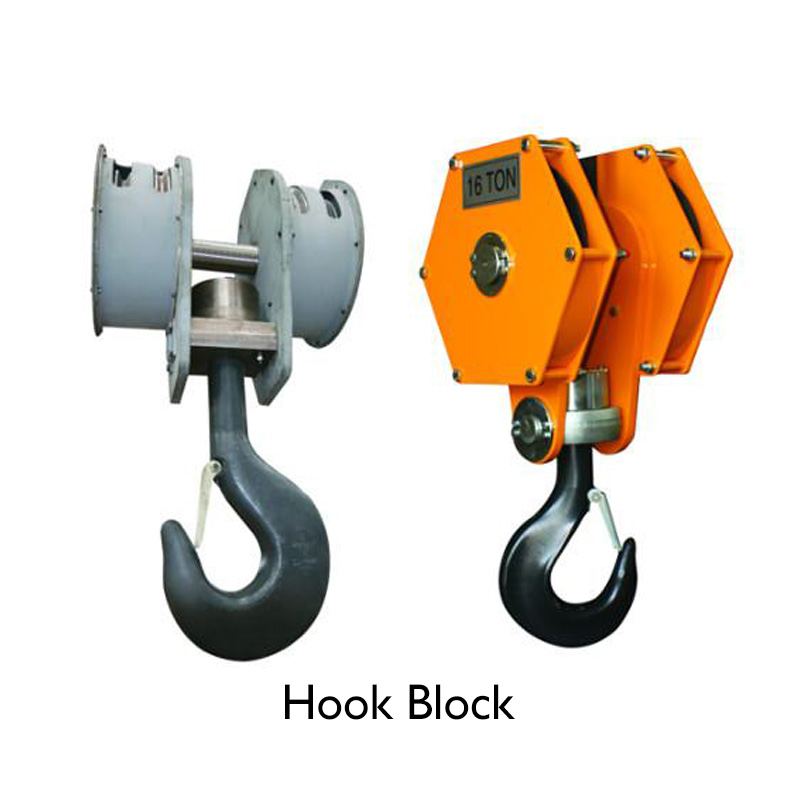

• Hook Block

With thw axial bearing hook allowed for 360° turn and hook block designed according to DIN 15411. Sheaves are manufactured regarding working class as steel, spherical or grey cast iron, Sheaves are also equipted with roller bearings for low fiction usage.

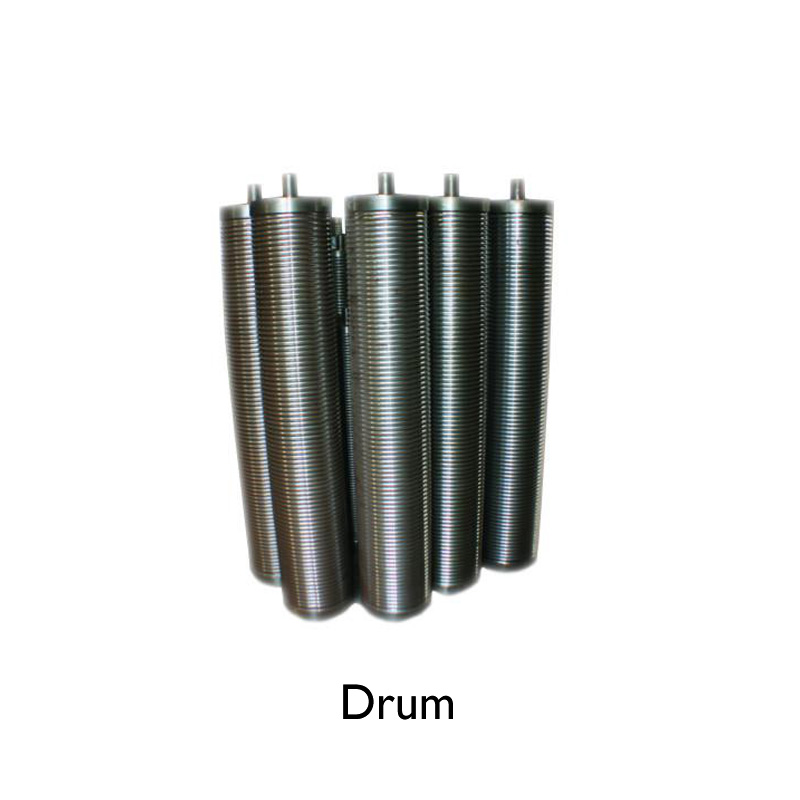

• Drum

It is produced open grooved St 44 or St 52 prepared rolled pipe according to DIN 15061. A special proceeding has done to block the friction of the drum and the groovies surface

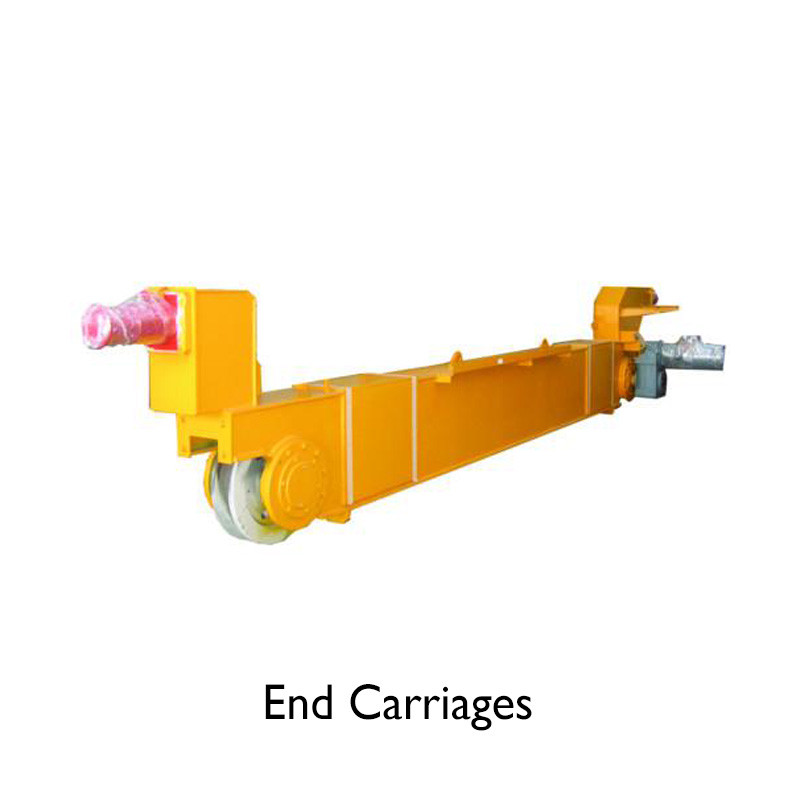

• End Carriages

Modular type end carriages. Wich produced from cased profile or with the technic of combined&welded steel plates depends on the diameter of the wheels (160-630 mm). Carriage units reducers are ABM (German made) and it has quite working possibilities.

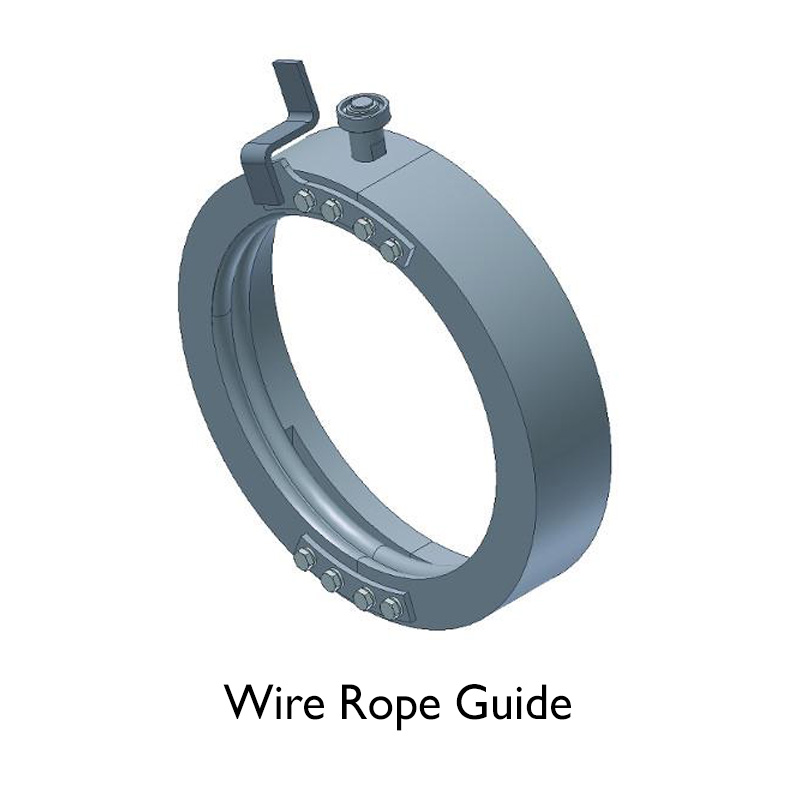

• Wire Rope Guide

Made of welded iron or steel material to block the rope over and over windedthe drum. There are teflon reels that makes spring preasure over the rope which the types that are made of steel.

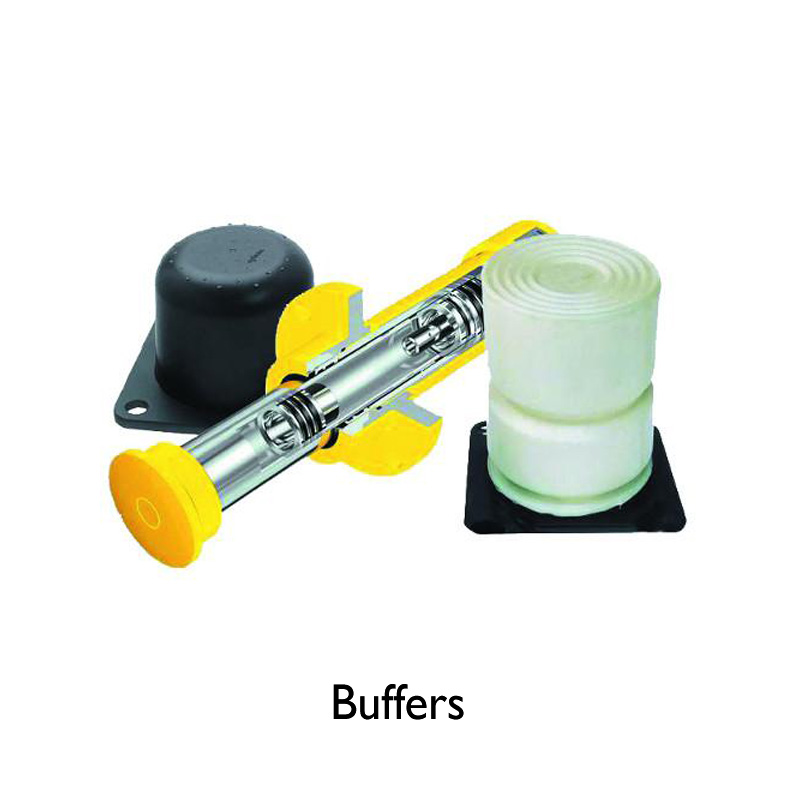

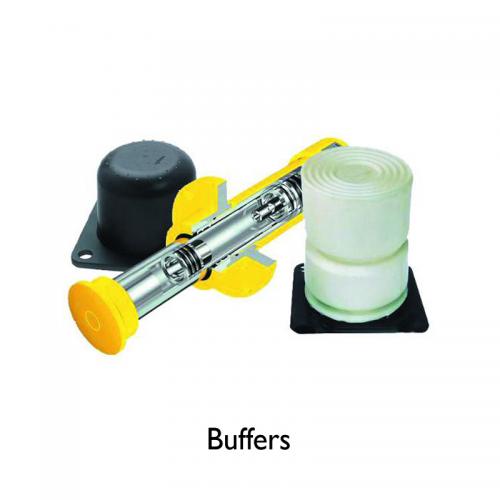

• Buffers

The buffers made of spring or rubber to protect the crane when there will be a crash

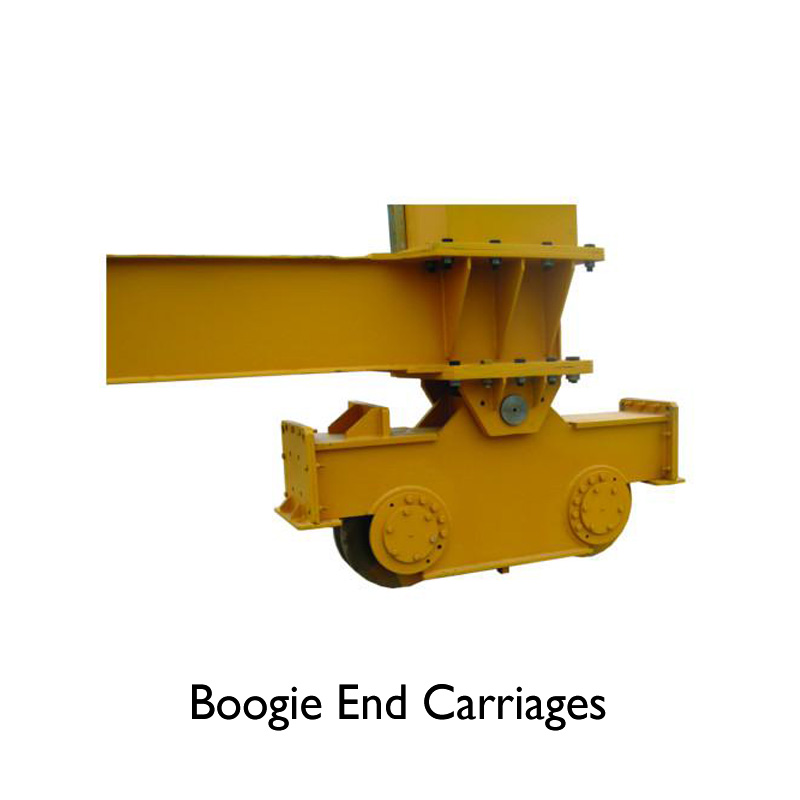

• Boogie End Carriages

Bogie end carriages unit can be used when there is a need of bigger capacity and the large axis (spans) of the bridge construction.

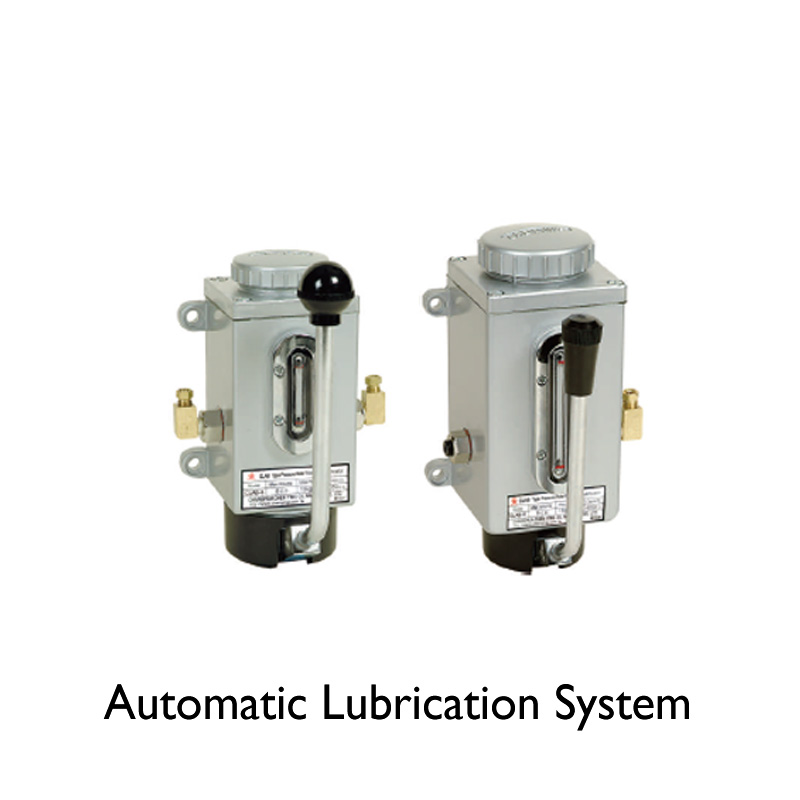

• Automatic Lubrication System

When the lubrication needed for the parts which are hard to reach than the automatic lubrication system will help you to reach every points needs greasing. So this will be very userful in the maintenance side.

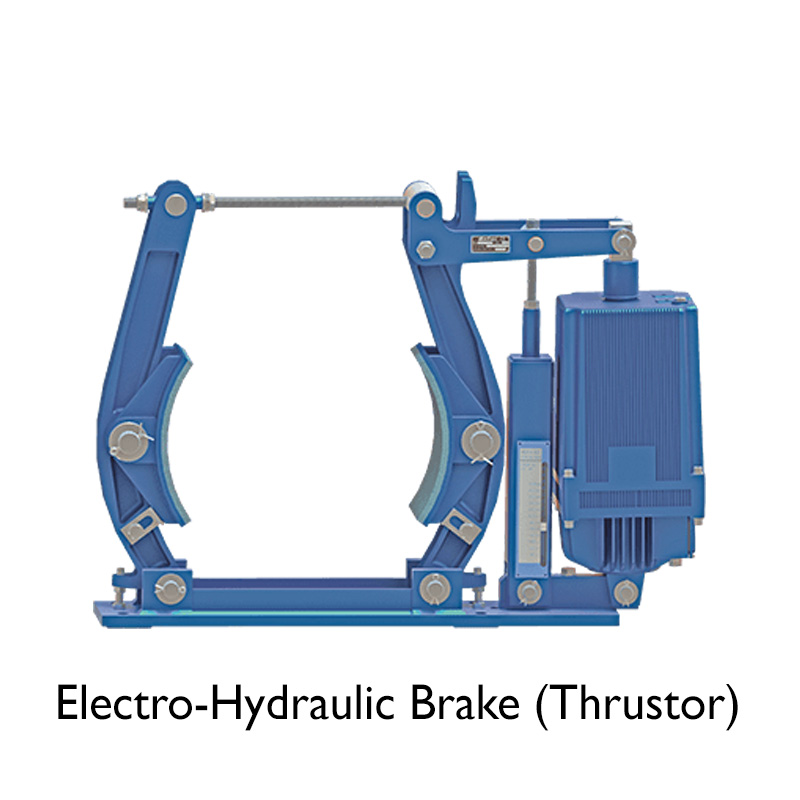

• Electro-Hydraulic Brake (Thrustor)

Electro-Hydraulic Brake to make the breaking much more safer when the brake on the lifting motors does not enough or if you need another brake for safety. It offers to work on very wide torque value with various brake frames and also can be fitted to directly to the drum.

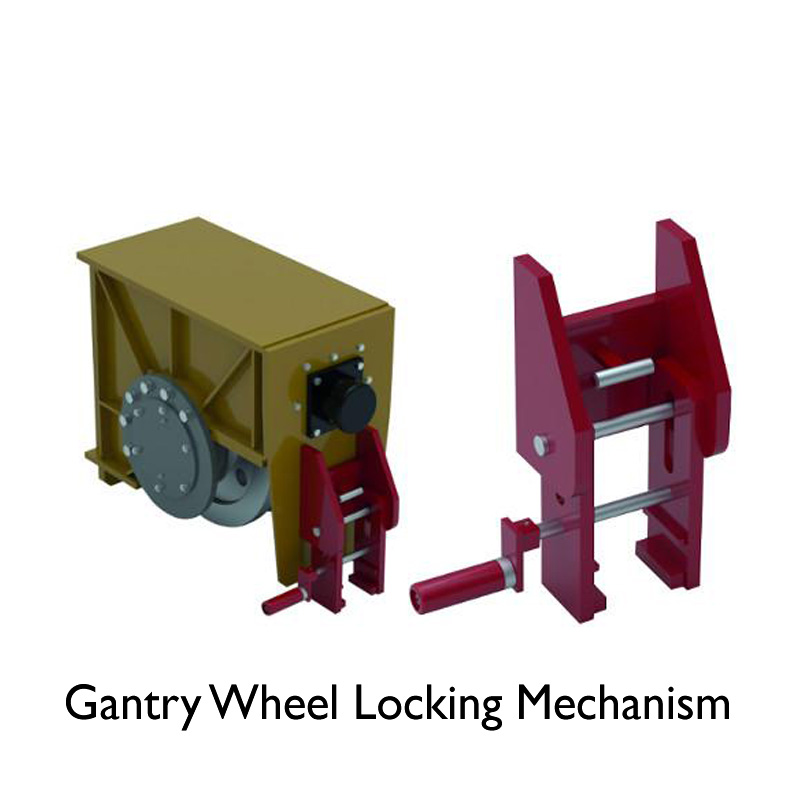

• Gantry Wheel Locking Mechanism

In open area cranes its used for protecting the crane by parking from outdoor air conditions

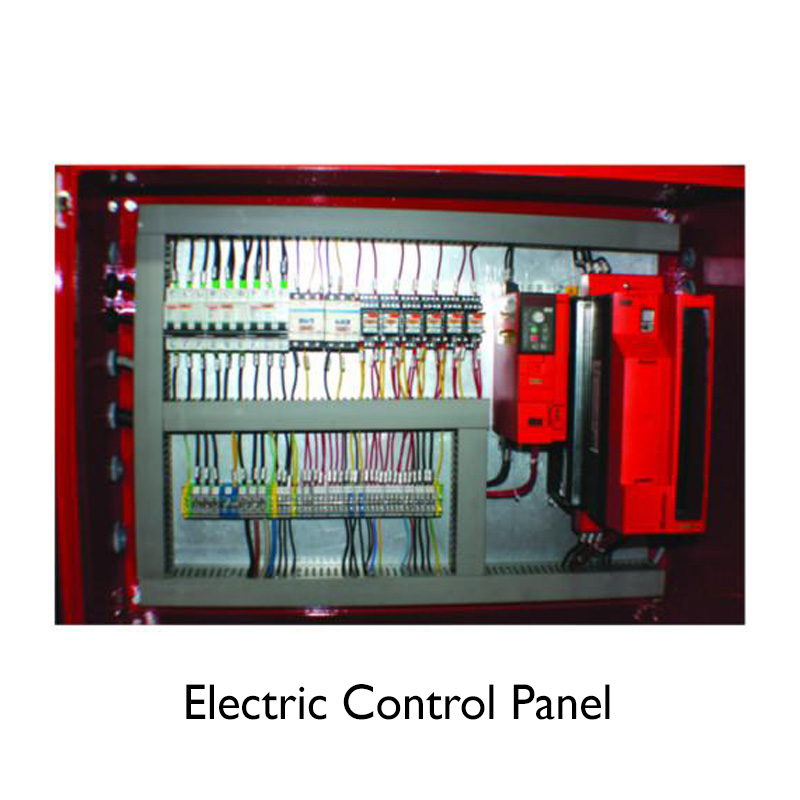

• Electric Control Panel

Protection Rate IP55-IP65. For driver type with fan. Ground protection. Supply 380 V 3 phase. Driver types Sew, Telemecanique, Emerson, Siemens, Mitsubishi, GE and ABB. Power components Telemecanique, Siemens. Cable, shalt, driver tolerance rated + 20%

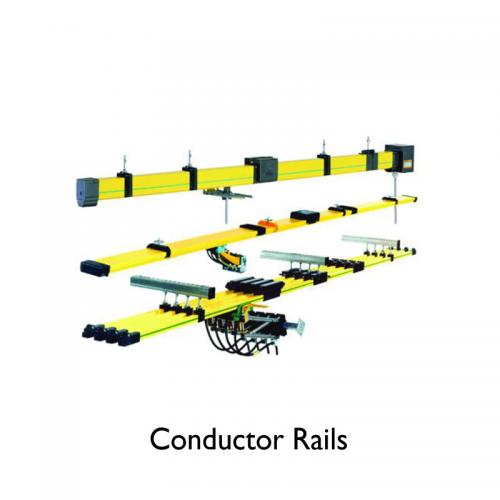

• Conductor Rails

Multipole and enclosed conductor rails contain several poles in one or several compact box type plastic housing. They are used for energy and data supply on straight and curved track configurati- ons. For indoor and outdoor applicati- ons.

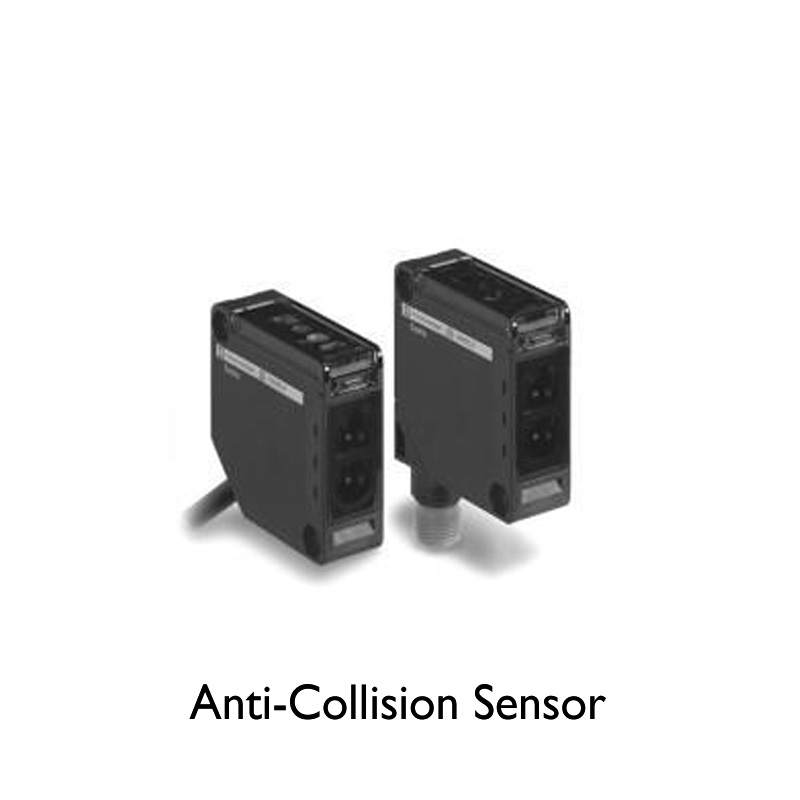

• Anti-Collision Sensor

When using more than one crane in the same hall the anti-collision system sensor will avoid anti-collision the cranes to each other. Also the breaking distance can be arranged between two cranes. It has 24-220 V supply. Distance adjustable. Long life.

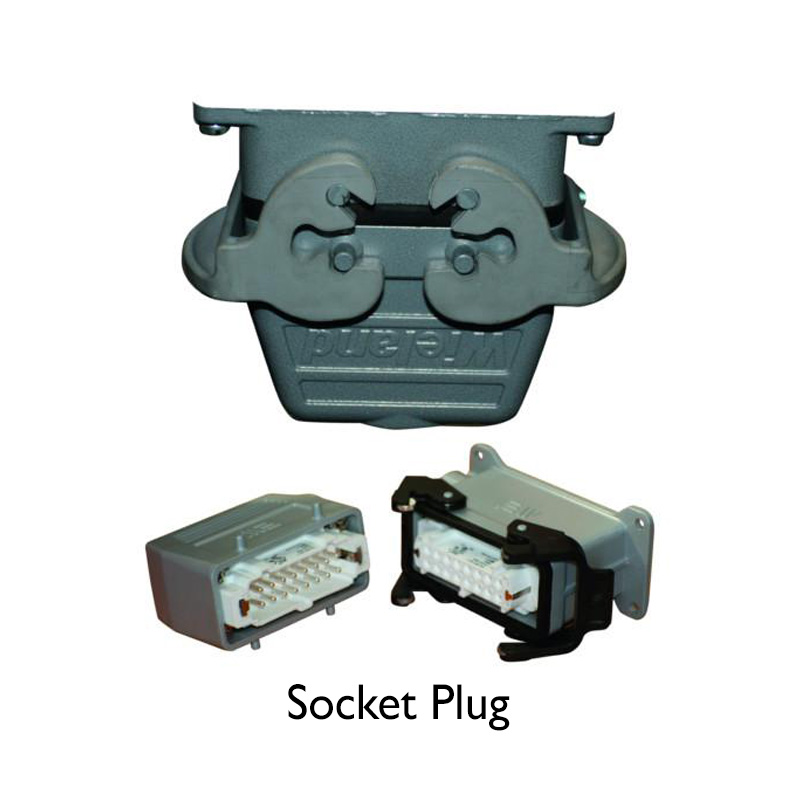

• Socket Plug

Socket Plug are used to make a direct electrical connection to the motors and the electrical control box by 12-16 pin entry. Using a socket plug will help you to ease of montage-demontage and ease of maintenance. IP 65 protection class. Metal head and of it helps the demounting.

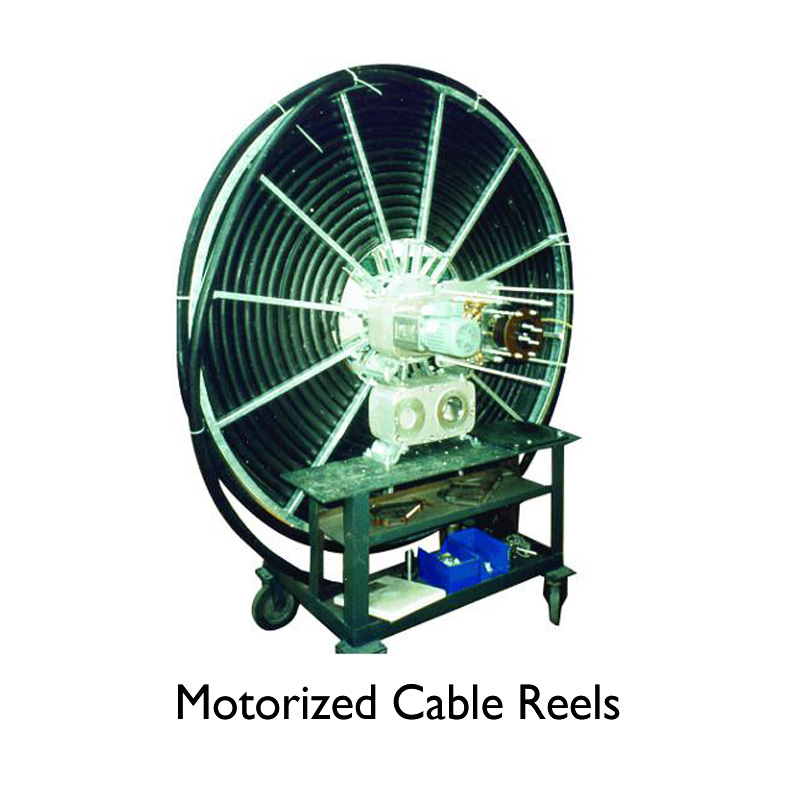

• Motorized Cable Reels

Motorized cable reels are usually used in open area gantry crane systems winding the cable to the drum by using motor&gearbox. Because of having torque motors, it avoid the cable to loose.

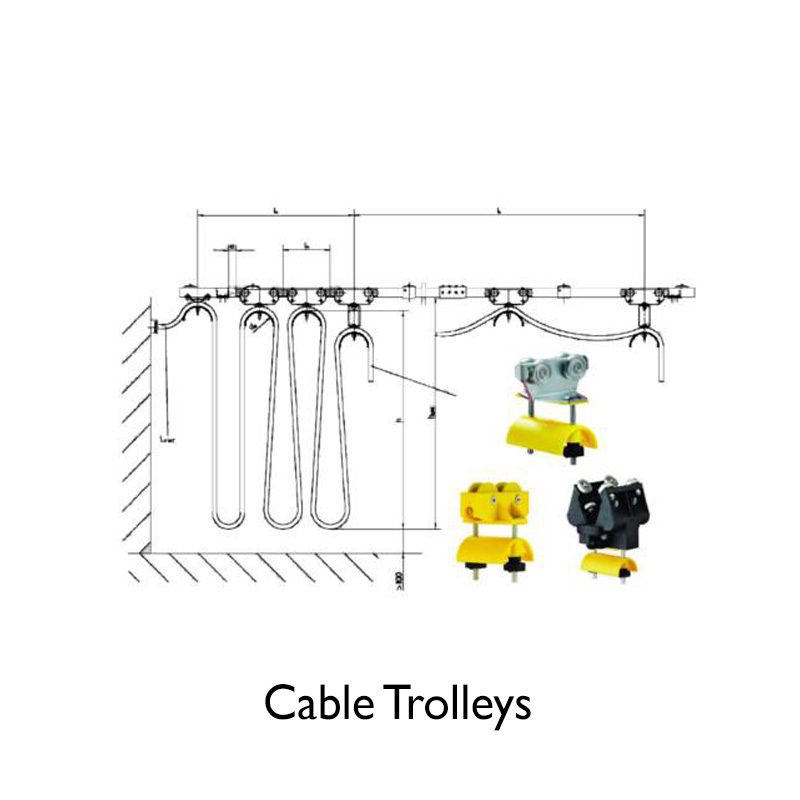

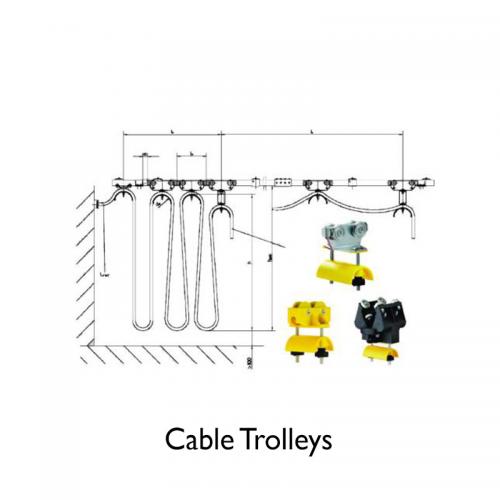

• Cable Trolleys

Our festoon-systems carry flat and round cables for the transfer of electrical energy and data for the crane systems. Hoses are also carried for the directing of fluids, air or gases. The cable trolleys can be manufactured from plastic and also steel with a roller bearing.

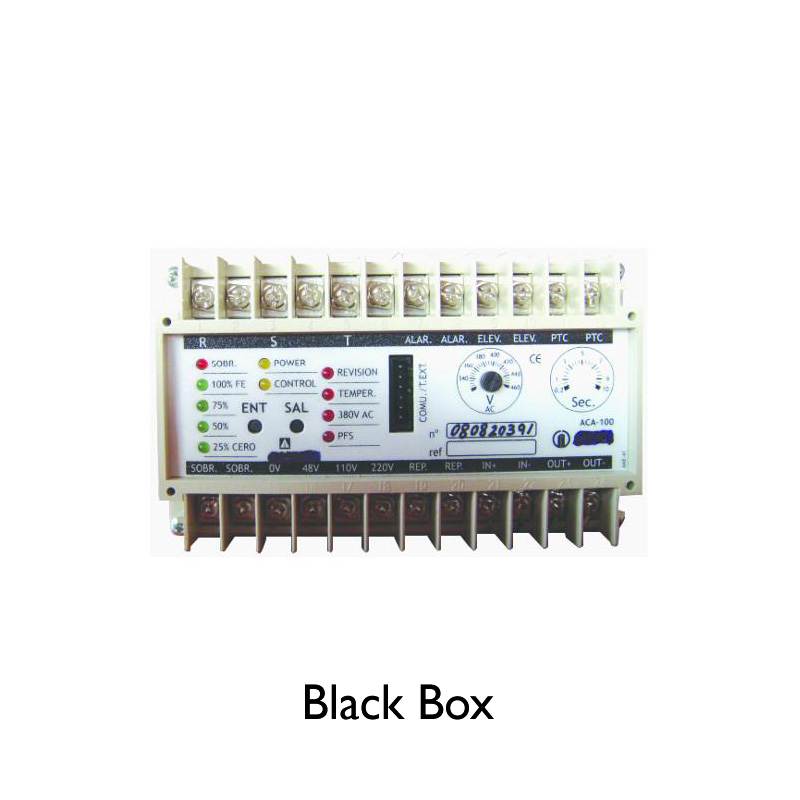

• Black Box

An electronic device which able you to measure the operating datas and times for the cranes. This datas will help to operate the cranes more safely and for to apply better service.

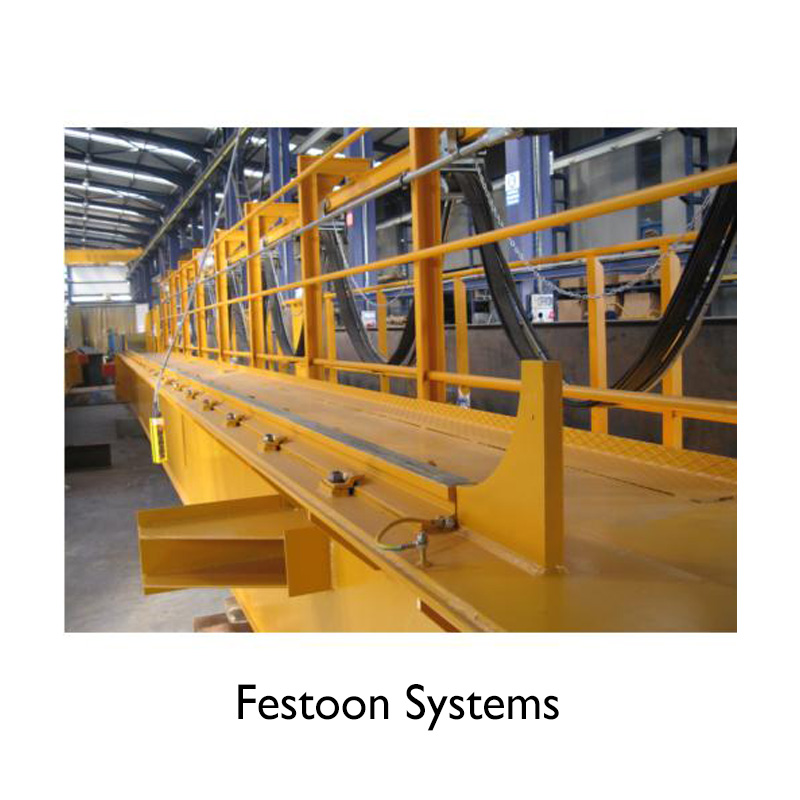

• Festoon Systems

Specialy designed rolled form of galvanized profiles used to carry festoon system trolleys.

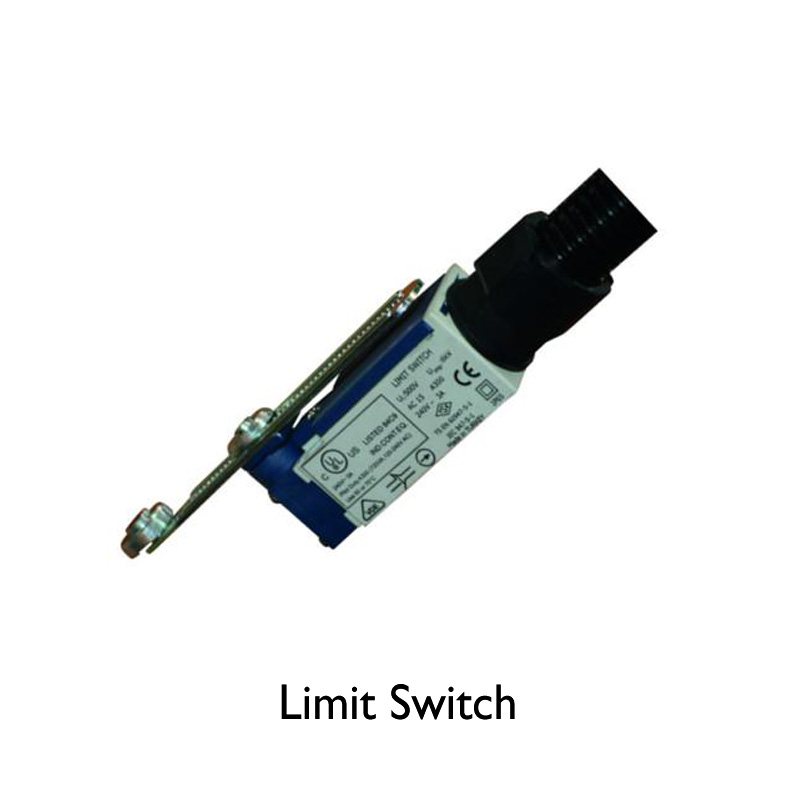

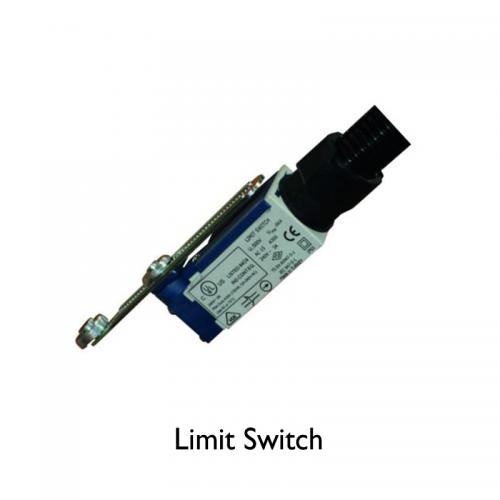

• Limit Switch

Swithes are used for to avoid crashing when you operate the cross and long travel.

NO+NC contac

Protecion type IP55

24-42-110-220 V

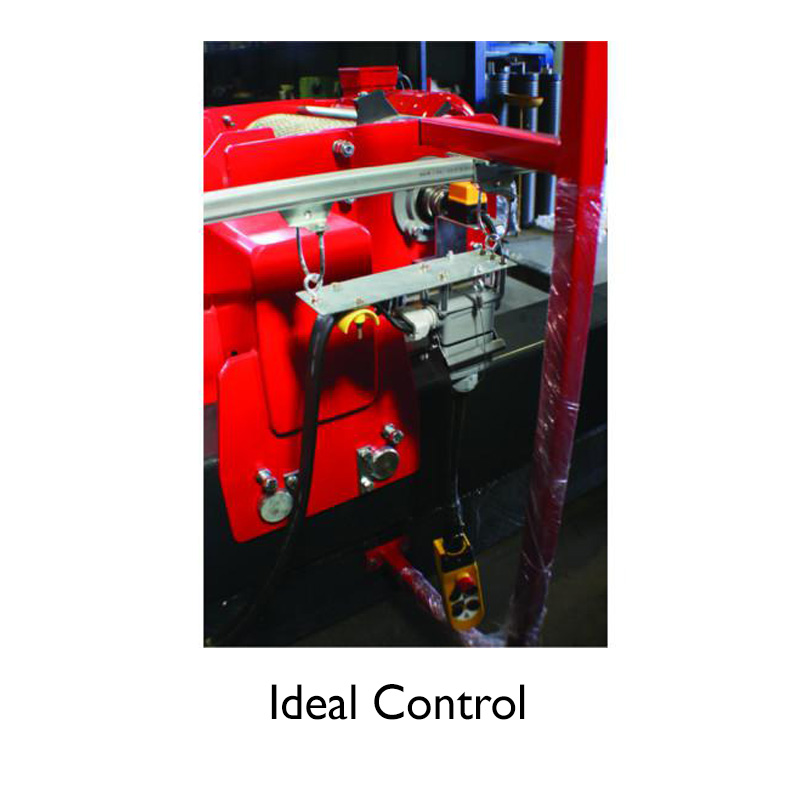

• Ideal Control

The ideal control that works freelance with the crane movements protects the operator when the load is lifting, lowering and travelling.

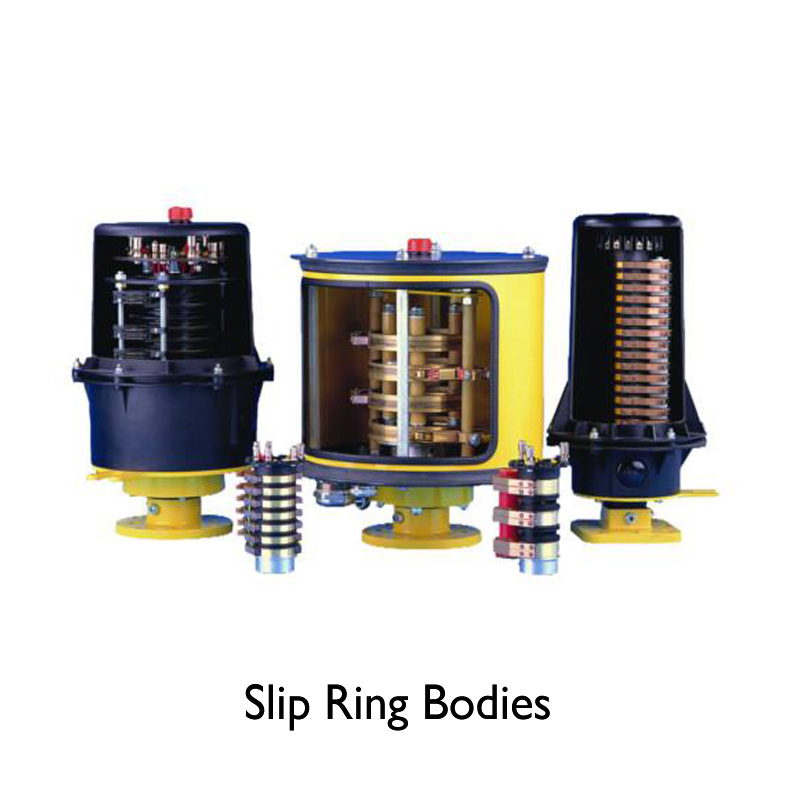

• Slip Ring Bodies

Slip ring bocties are used as power and data transfer systems for all types of rotating machines, e.g. Revelving cranes with any number of poles Currentratings up to 1200 A and voltages up to 24 kV are possible. The range in size for the slip ring bodies starts with 30 mm up to 360 mm diameter and lined up to 100-poles. High impact plastic or galvanised steel housing to IP65 protection grade

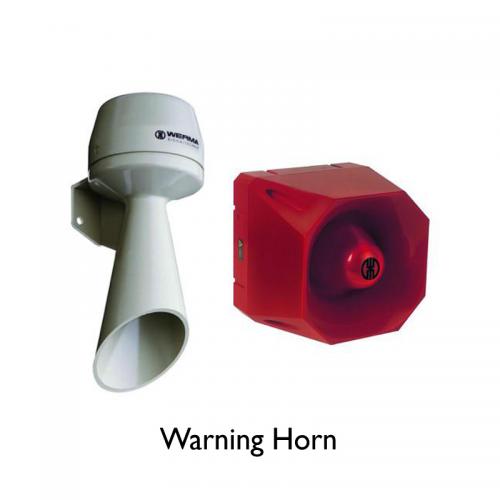

• Warning Horn

Warning Horn used to warn the enviroment when operating the cranes. These are devices which as the oppurtinity at red, green, yellow and blue colours. 1,5-2,5 mm diamater of cable. Are that be connected in one poins. IP 55 protecti- on class. Has 90-110 db voice. Can be used between -20°C ~ +60°C

• Warning Lamp

The crane scales are useable in every crane-user company. lts safe, fast scaling opportunity easy readable 5 digit LCD panel. IP 55 protection class. Can be used between -20°C ~ +60°C. On/Off control.

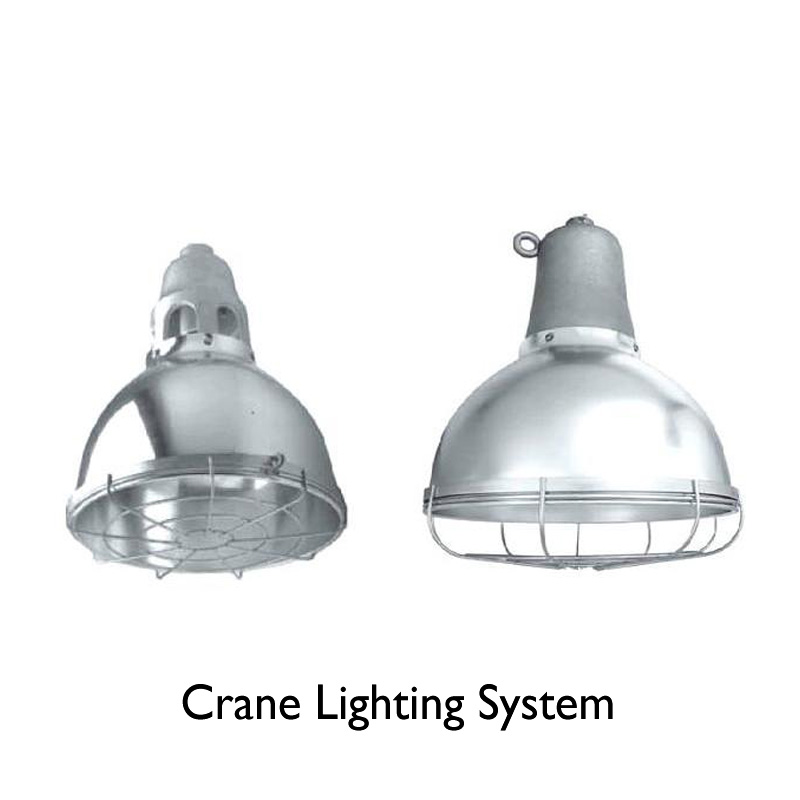

• Crane Lighting System

Crane Lighting Systems are used in indoor and outdoor applications to have clear visual for the working area. Range from 100 to 1000 W.

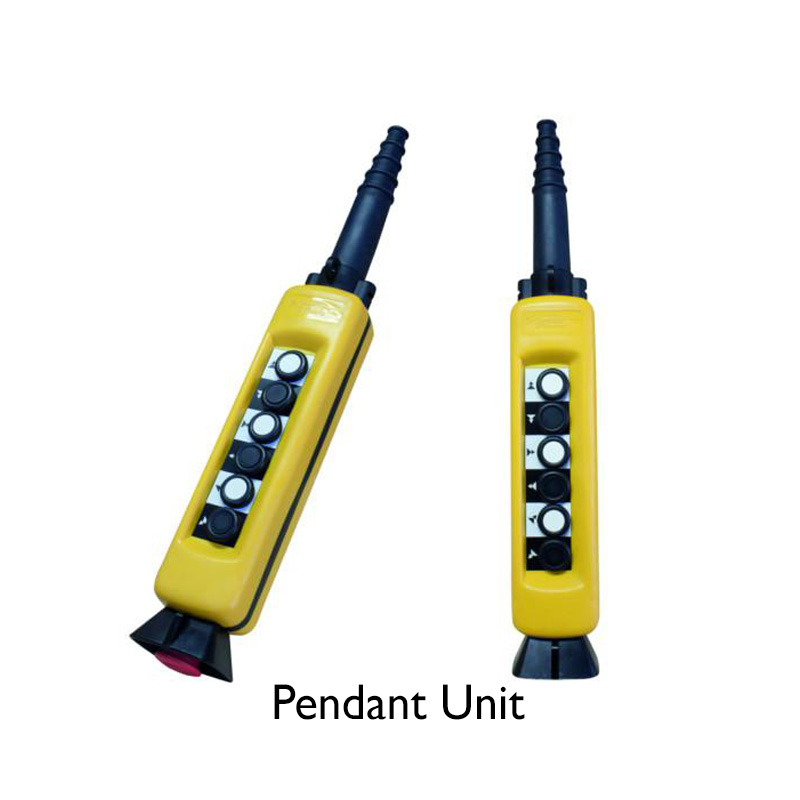

• Pendant Unit

This device has emergency stop button and the other needed buttons to control the crane's lifting and travelling movements.

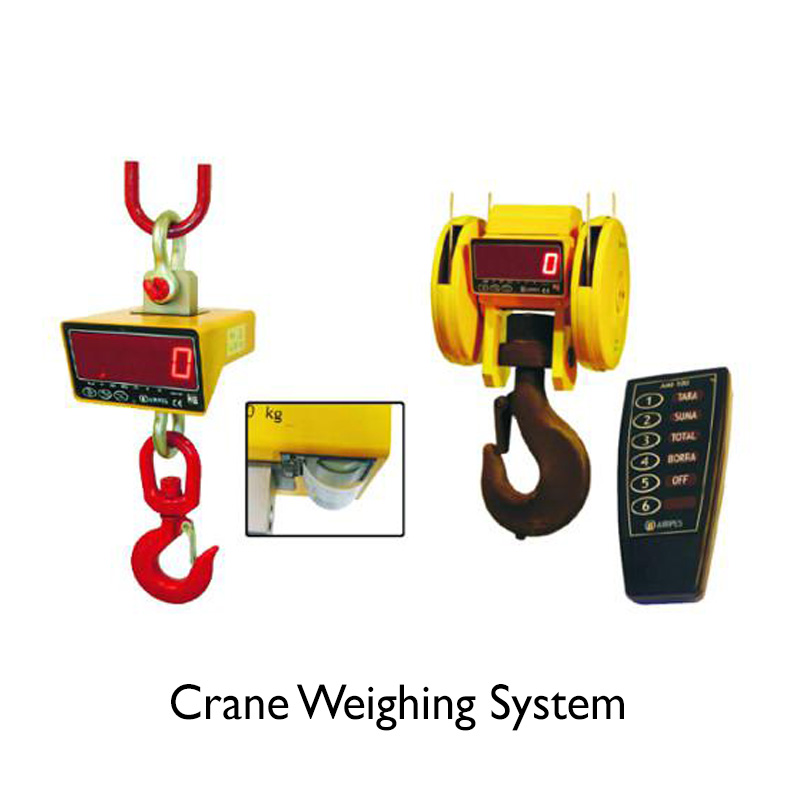

• Crane Weighing System

The crane scales are useable in every crane-user company. lts safe, fast scaling opportunity easy readable 5 digit LCD panel. IP 55 protection class. Can be used between -20°C ~ +60°C. On/Off control.

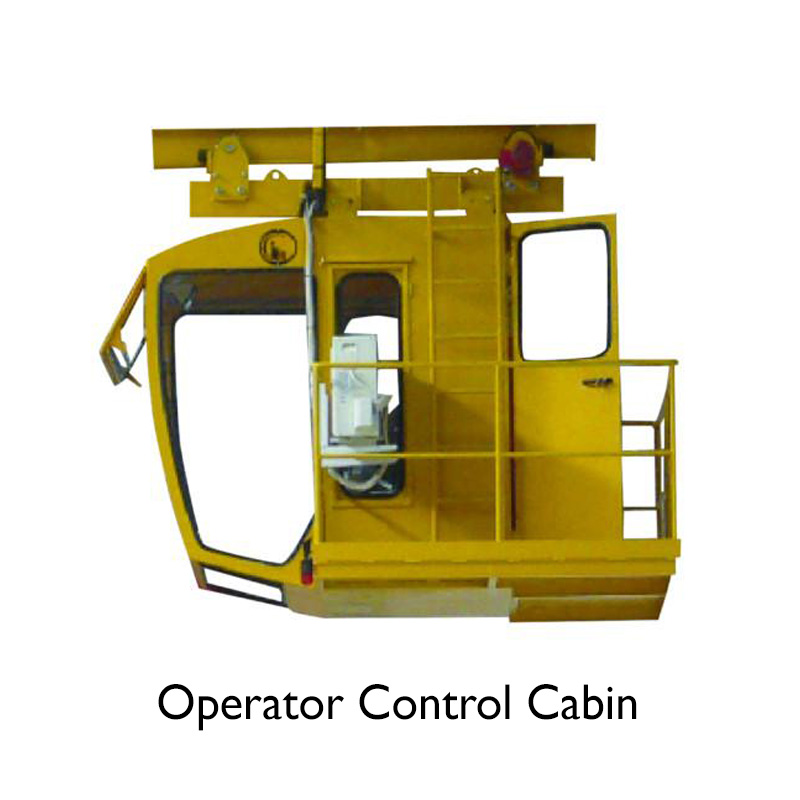

• Operator Control Cabin

Operator control cabins able you to wide field of vision controlled by joystick and button controls and vibration absorption systems seats. Due to needs it can be equipped with aircondition system PLC application and other accessories.

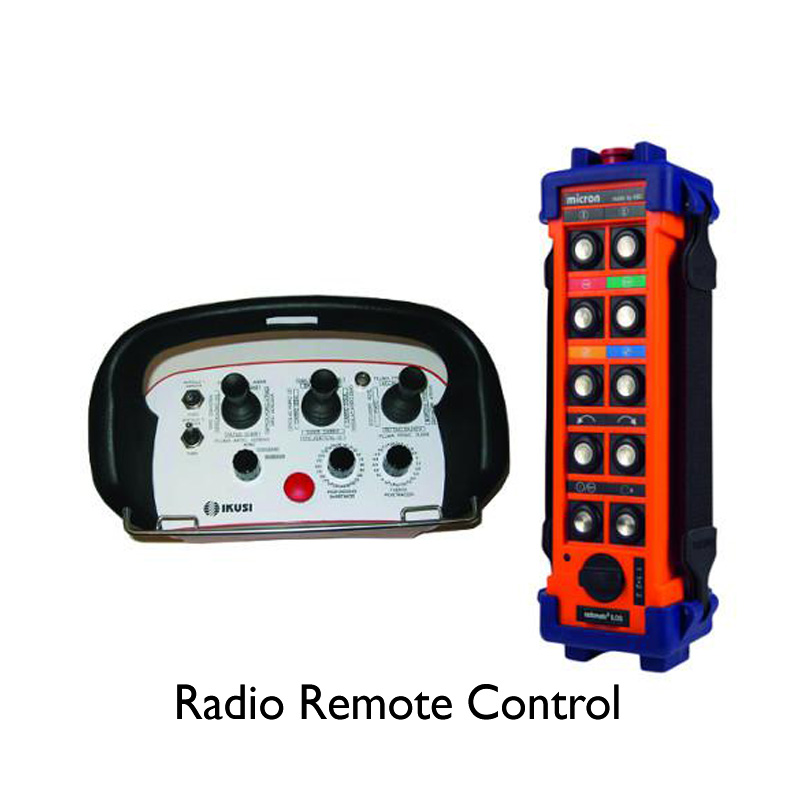

• Radio Remote Control

lts a system that has the same duty like uHrasonic and radio frequence contro- led remote control without any cable connection which gives the oppurtunity to the operafor to move freelance

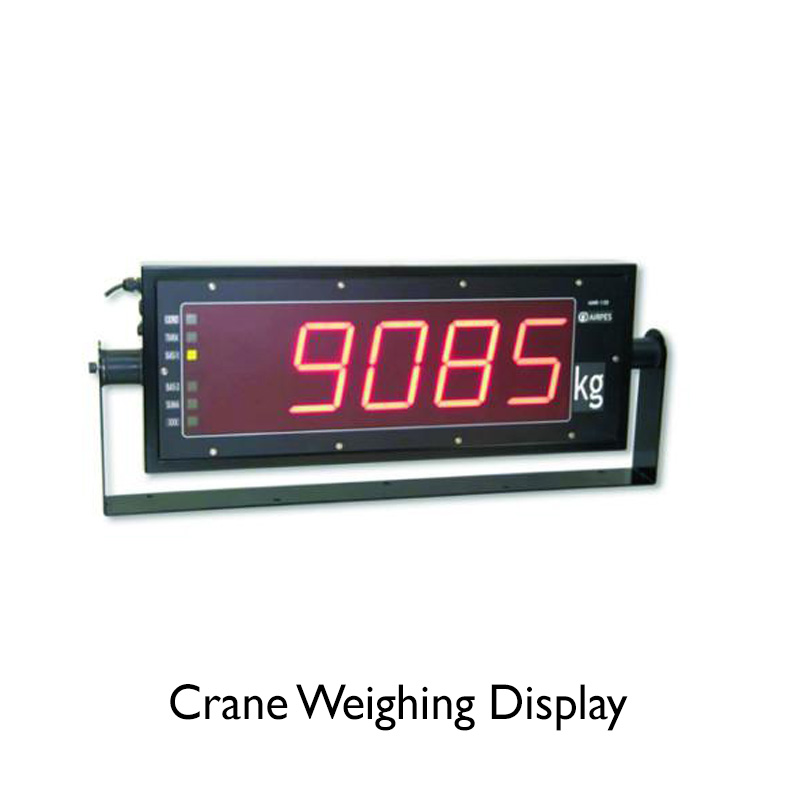

• Crane Weighing Display

With 5 digits LCD panel. 130 mm. Can be used between -20°C ~ +60°C. On-Off control. IP55 protection class. Can show erasing and weighing calculation.

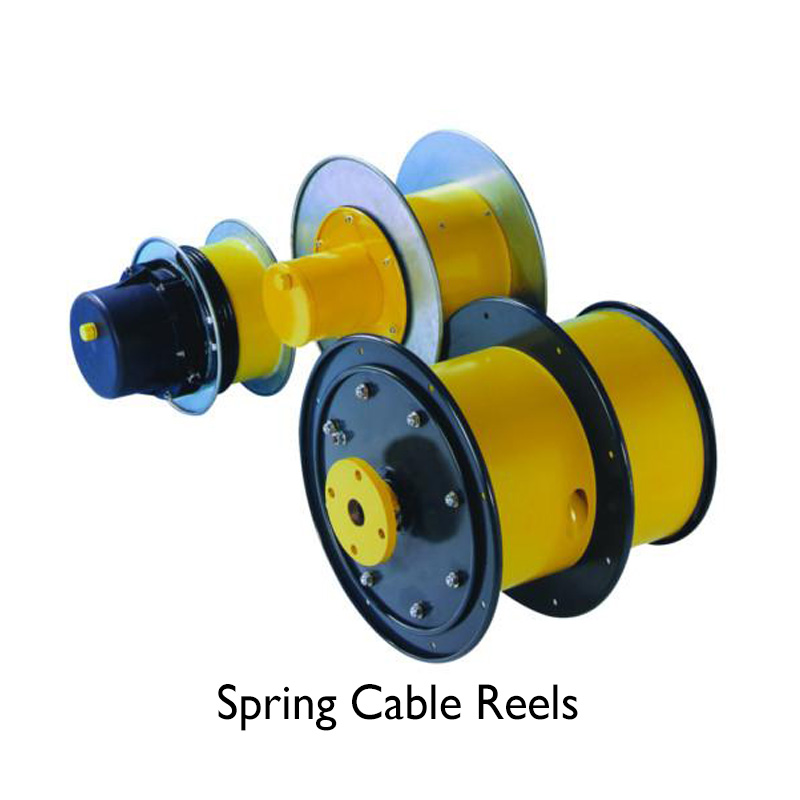

• Spring Cable Reels

Through the spring mechanism over, it can do the same duty that motorized cable reels does. lt has price advantage. Because of not having motor&gearbox in their body.

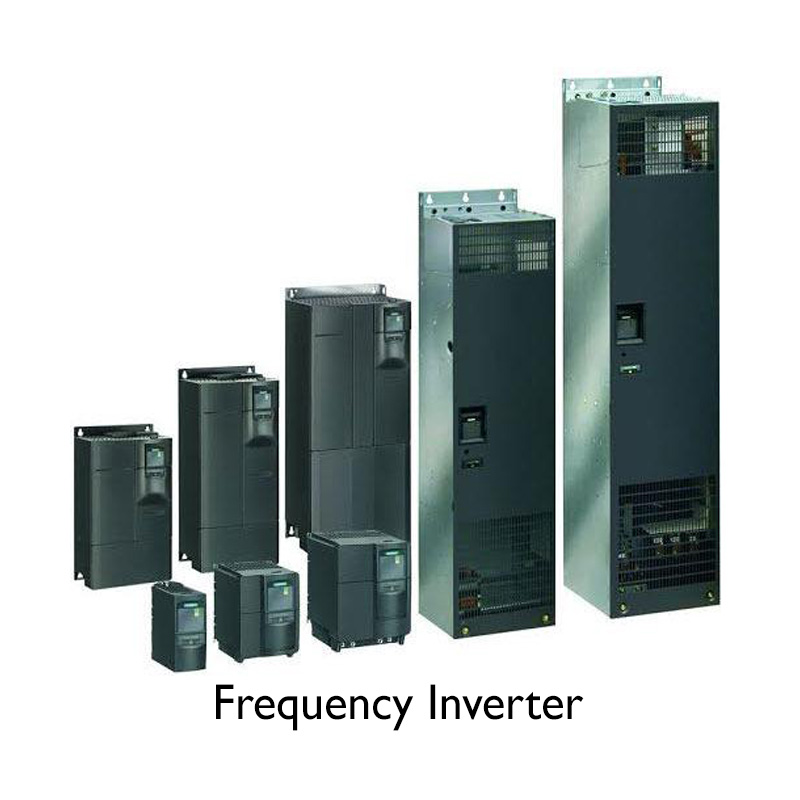

• Frequency Inverter

Ac inverter drive used to supply asynchronous motors. The drive can operate in closed loop flux vecfor control mode or according to U/F control with its calculalion power. The drive separately controls the magneti- sing current and the active current of a standard asynchronous motor. The rotor speed and position are calculated to control the motor torque and speed. This operating mode is used, in closed loop, to obtain very high performance levels and is thus suitable for the majority of applicatlons.

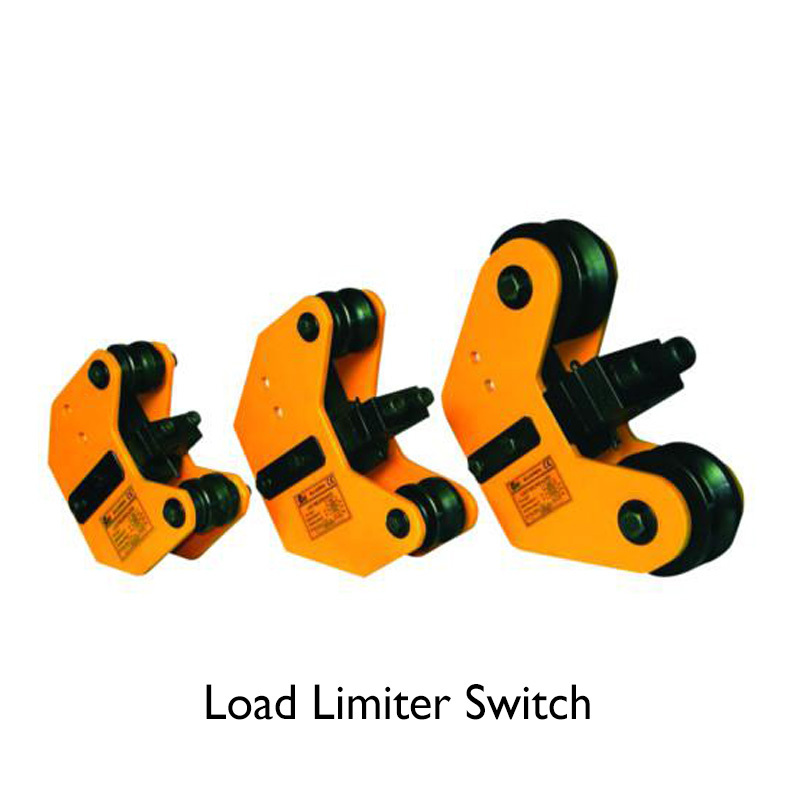

• Load Limiter Switch

With 5 digits LCD panel. 130 mm. Can be used between -20°C ~ +60°C. On-Off control. IP55 protection class. Can show erasing and weighing calculation.

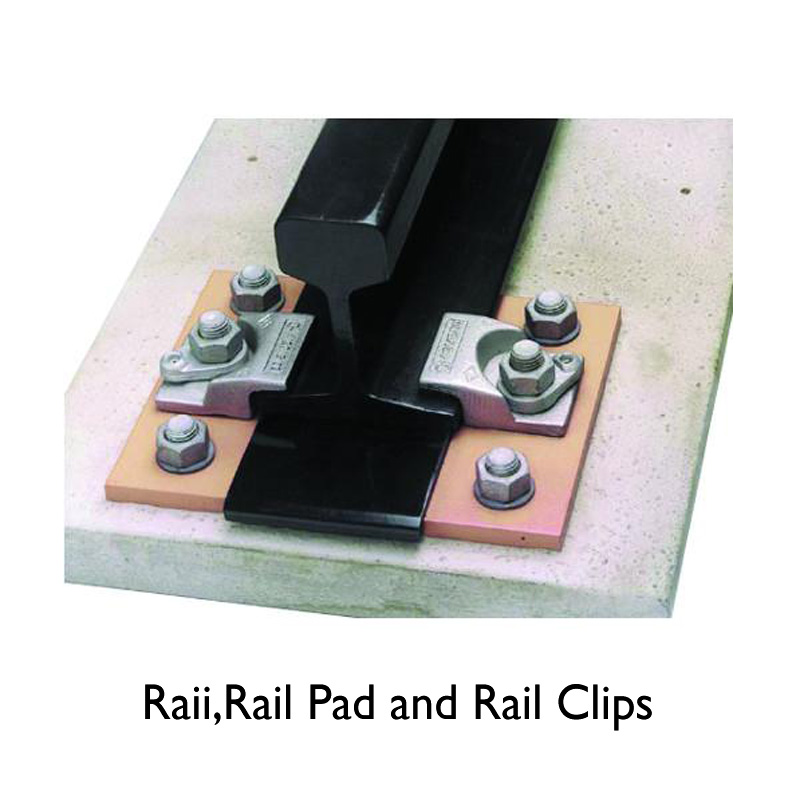

• Raii,Rail Pad and Rail Clips

Produced os A or S type train rail with mushroom head with special strength steel according to DIN 536. At the same Hme the railthat are produced as rectangler shaped, cold beared materi- als called St 52-3.

The flexiability of Rail Pad allows more sofer working place by deploylng the weights on the rails to the ground and absorving the vibration and sound. Rail clips are the materials that are used to connect the rails to the ground.

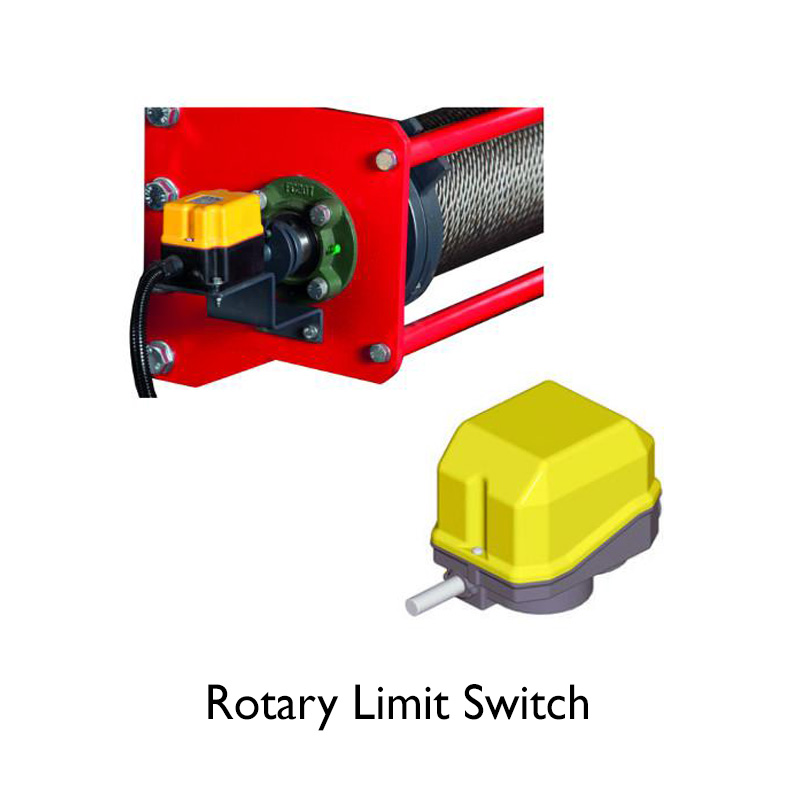

• Rotary Limit Switch

Rotary limit switches will allow you to set the lowest and the highest position of the hook. lts mounted the small period applications like drum and shaft. Then you can limit between two points or multipoint with entering the set values. The flange connection is can be made make and female, or the limiting can be used on pinion gear reducer and drums. In optional the potentiometer and encoder includeds can be used
